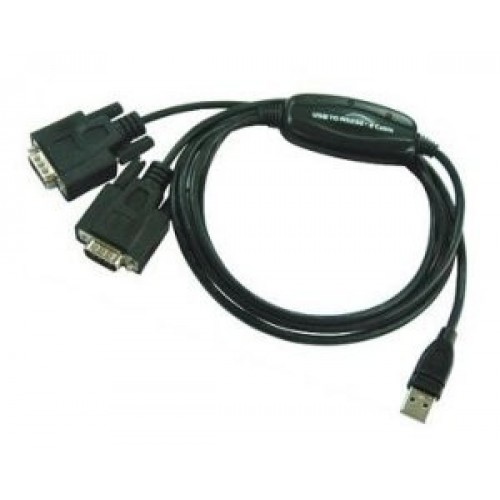

USB to Serial Adapter 2 port Dual Cable - FTDI COM Retention

Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB With genuine FTDI chipset based, it is a high performance, robust device.

Features and Applications

This Tronix branded, advanced FTDI chipset based adapter cable is the perfect way to connect serial devices to laptops or PCs with no serial ports. Many new laptops and PCs have at the most, one serial port. This is a problem when you have multiple devices with serial connectors! What happens when you have a PICC Board and a Serial Programmer that you want to connect at the same time? This FTDI USB to Dual Serial Converter is the answer to that problem.

Each serial port can be independently configured with various synchronous and asynchronous interfaces. Users can have the option to operate both serial ports at the same time.

This FTDI Dual Serial USB adapter provides 2 x 9 pin RS232 serial ports which can be used with PDAs, Mobile Phones, GPS, Digital Cameras, Modems, ISDN Terminal Adapters, serial mice.

Chipset: FTDI - FT2232D with COM Retention as standard.

0.5Mbps transfer rate per port.

Data buffers for upstream and downstream on each port.

Supports remote wake-up and power management.

Supports RS232 Serial Interface (DB25 or DB9)

LEDs

OS Support - Windows 10,  Windows 11 Drivers

Installed as a standard Windows COM ports, Full RS232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND.

Allows Hardware Flow Control

This device is guaranteed to work with all the latest Windows operating systems including 64 Bit editions with ease. No messing around or driver issues as it uses a high quality premium FTDI chip unlike many other USB to Serial adapters found on the market.

Length of the cable is about 1.5M (nominal)
Maximum separation between the two RS232 connecters is approx 0.80M

Unlike lower cost devices, this device has COM port retention and WHQL qualified drivers up to Windows 10!
