RP2040-Zero a Pico like Raspberry Pi MCU Board, Arduino, Waveshare

(with pre-soldered pinheader)

Description

RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

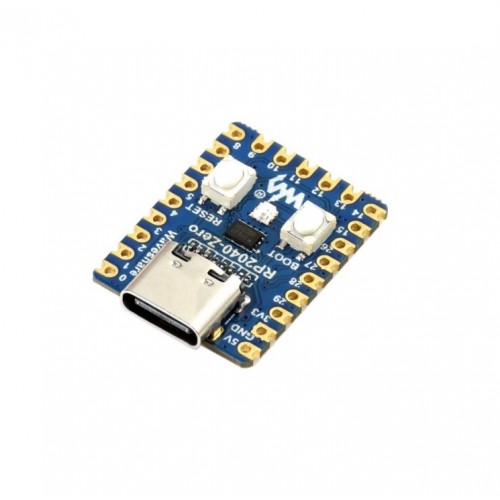

RP2040 MCU Board Zero

a Pico-like MCU board based on Raspberry Pi RP2040

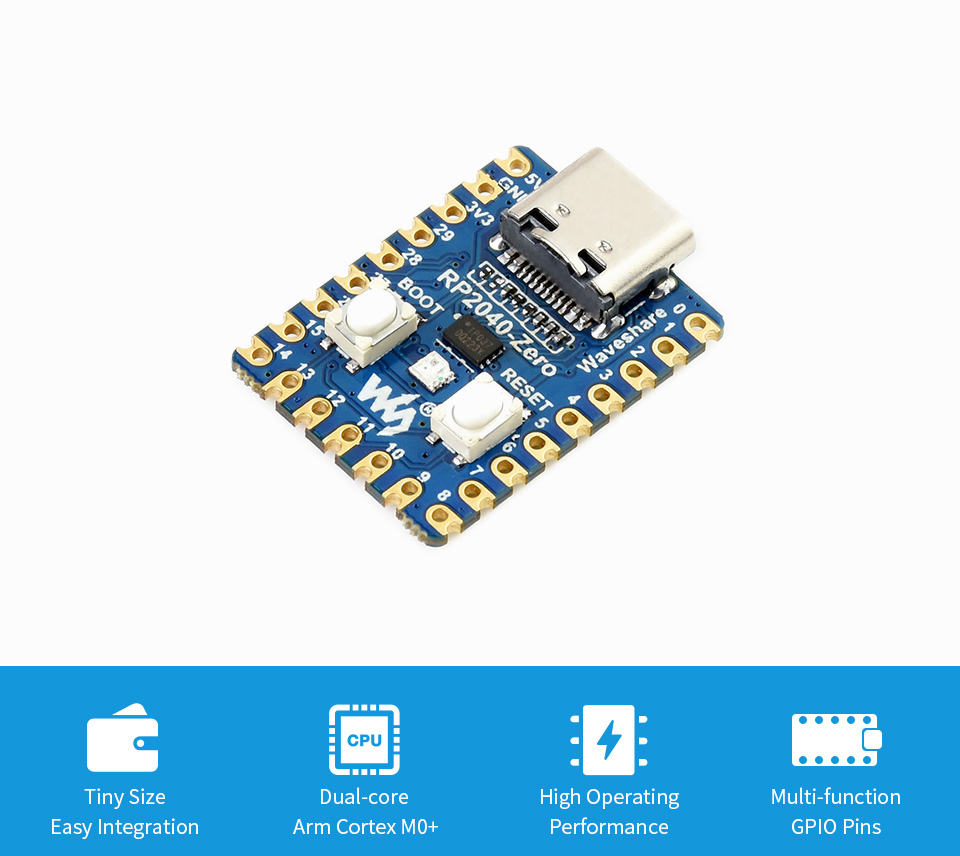

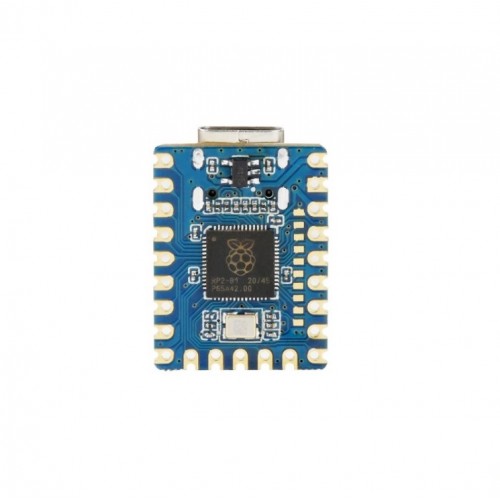

Castellated Module, Suitable For SMD Applications

Board Specifications

·       RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

·       Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

·       264KB of SRAM, and 2MB of on-board Flash memory

·       USB-C connector, keeps it up to date, easier to use

·       Castellated module allows soldering direct to carrier boards

·       USB 1.1 with device and host support

·       Low-power sleep and dormant modes

·       Drag-and-drop programming using mass storage over USB

·       29 × multi-function GPIO pins (20× via edge pinout, others via solder points)

·       2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels

·       Accurate clock and timer on-chip

·       Temperature sensor

·       Accelerated floating-point libraries on-chip

·       8 × Programmable I/O (PIO) state machines for custom peripheral support

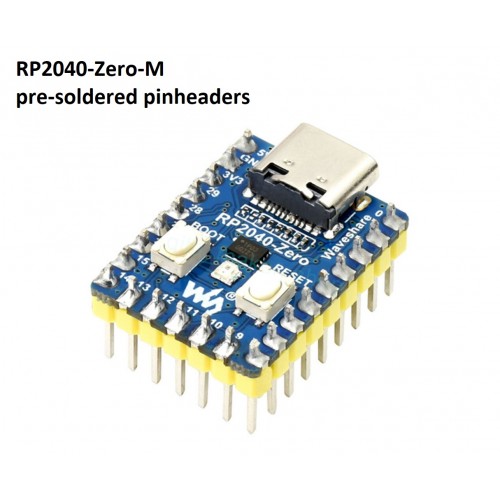

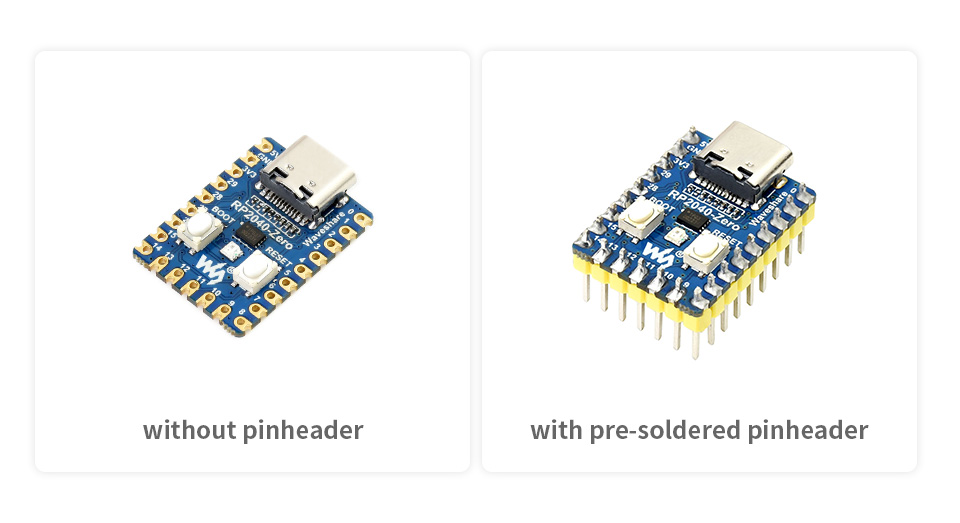

Pinheader Options

C/C++, MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

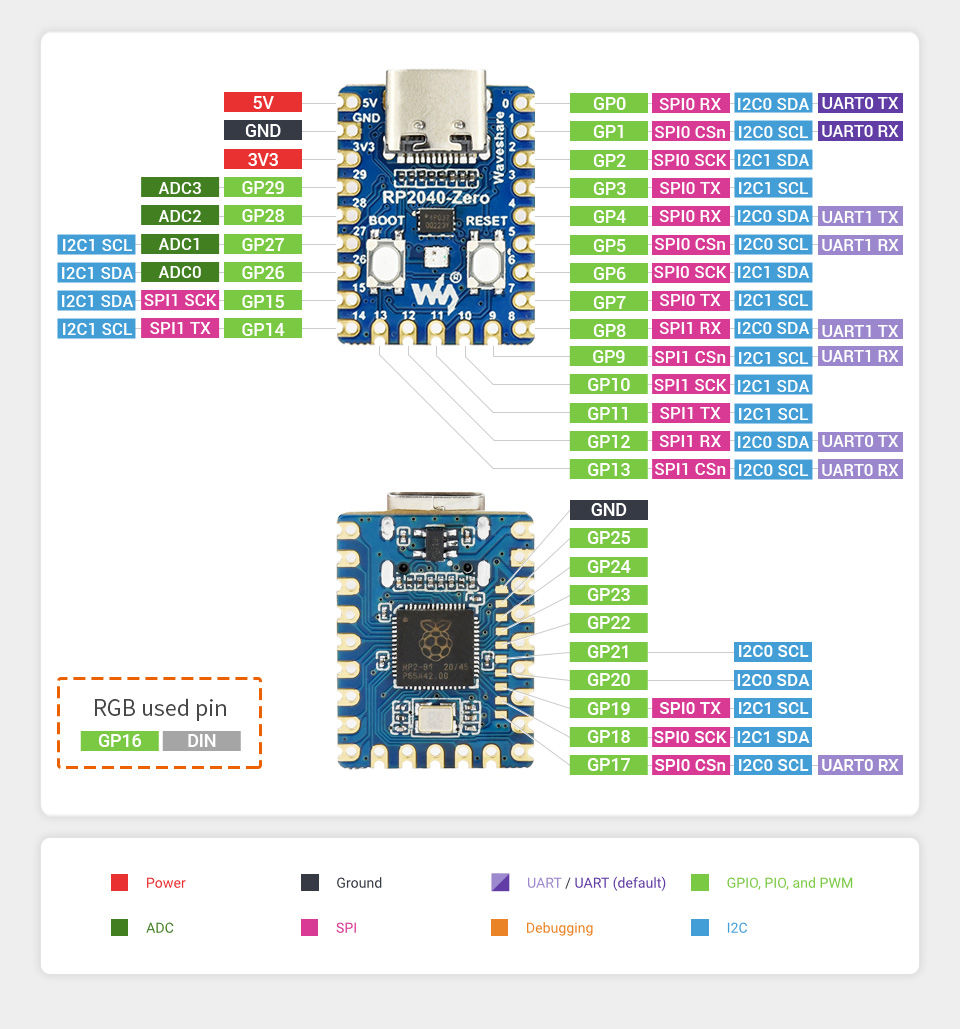

29 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

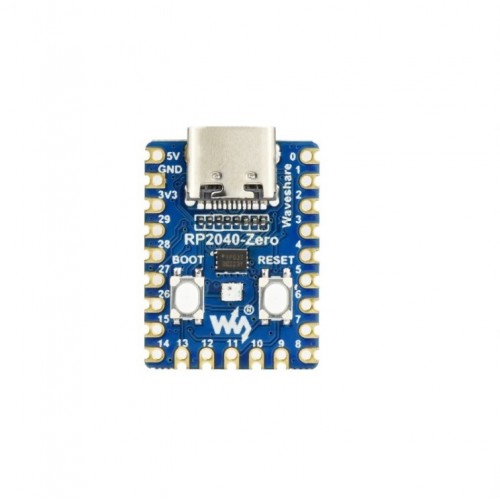

What's On Board

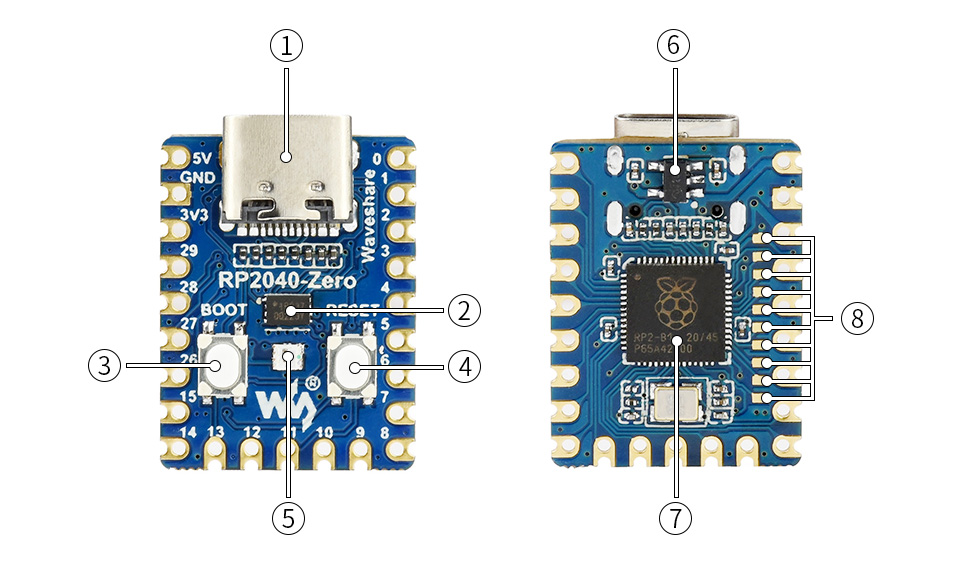

1. USB Type-C connector
2. W25Q16JVUXIQ
   2MB NOR-Flash
3. BOOT button
   press it when resetting to enter download mode
4. RESET button
5. WS2812
   cool RGB LED



6. ME621
   low dropout LDO, max current 800MA
7. RP2040
   dual-core processor, up to 133MHz operating frequency
8. RP2040 pins
   10x solder points, 9 of which are for GPIO

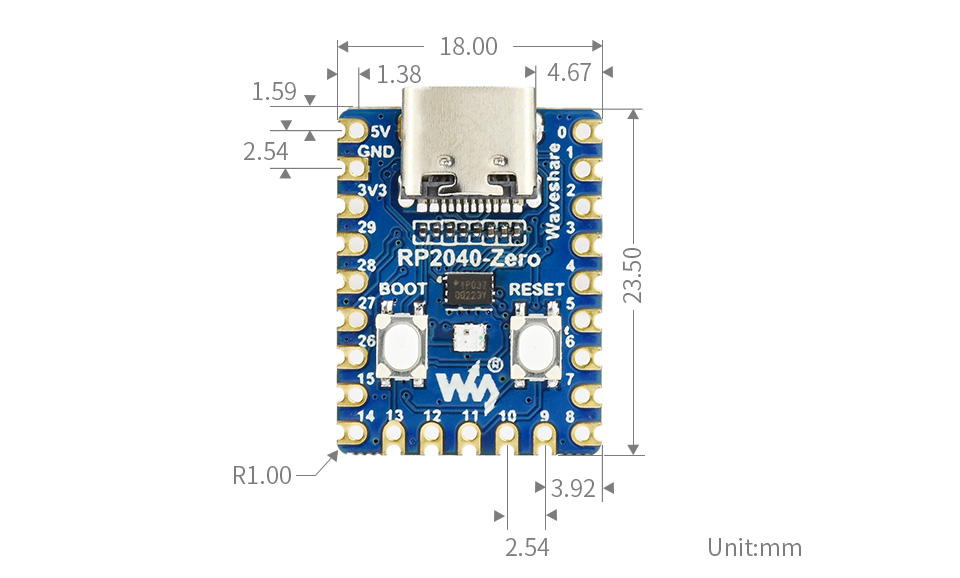

Outline Dimensions

Cautions & Warnings:

Development boards do not necessarily have the same ESD protection as those afforded in an enclosed commercial product and are not necessarily EMC compliant either. Please ensure you are familiar with ESD handling precautions when working with development boards.

Please be aware of the type and quality of board you are purchasing. These boards may not be recommended for use in a commercial or industrial setting but are great for use in a developmental or electronics maker/hacking environment. Please note that due to the complexity of issues related to development work, these boards are not provided with any warranty or technical support and no warranty is provided as to the fit-for-purpose for customer applications. However, we will always try and help with customer support enquiries and welcome feedback.
