Description

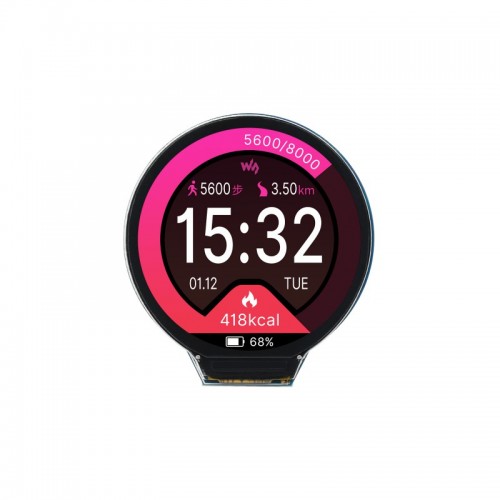

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor
RP2040 MCU Board With 1.28inch round LCD

based on Raspberry Pi RP2040

Board Specifications

RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use

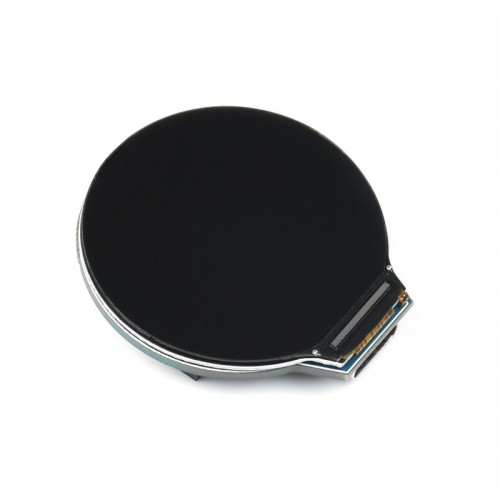

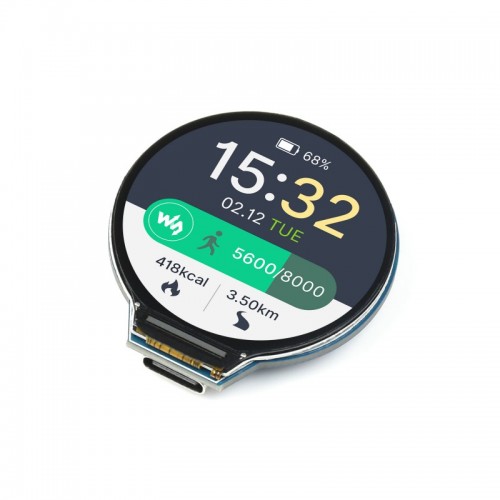

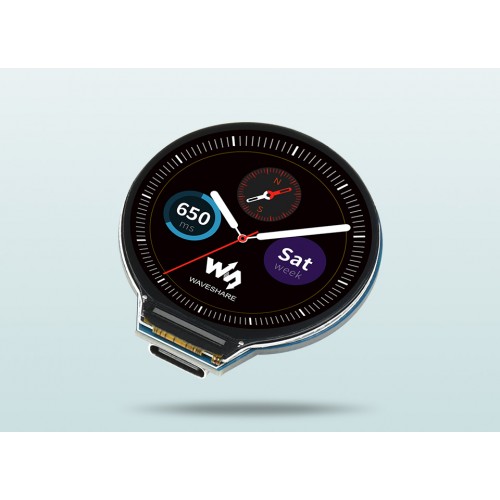

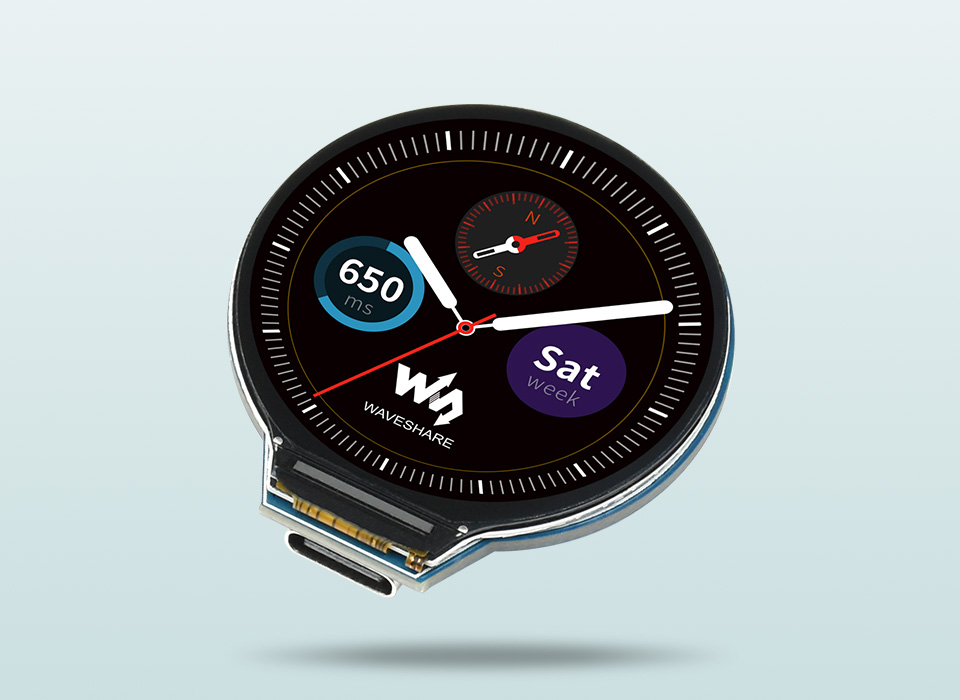

• Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
• Lithium battery recharge/discharge header, suitable for mobile devices

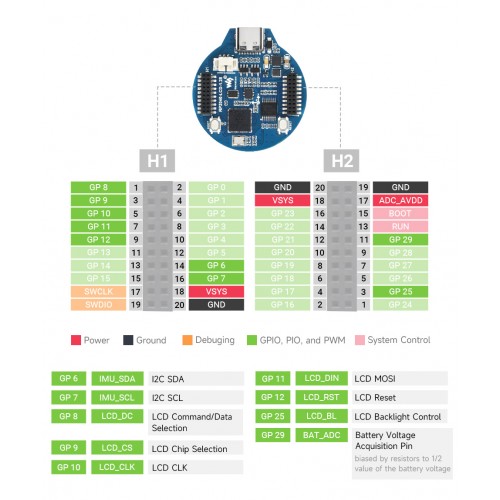

• All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++, MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

30 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

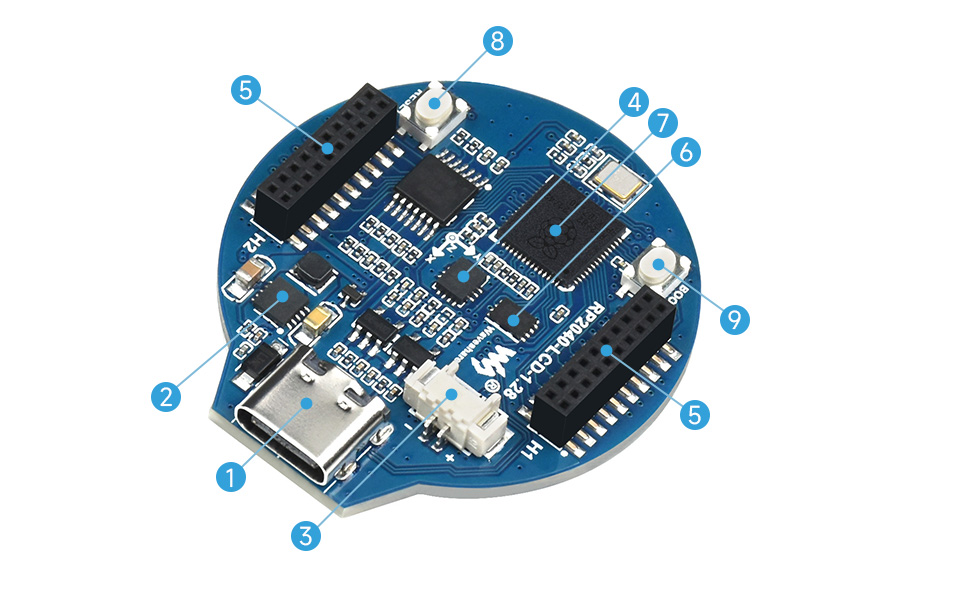

What's On Board

1. USB Type-C connector
   USB 1.1 with device and host support
2. ETA6096
   high efficiency Lithium battery recharge manager
3. Battery Header
   MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
4. QMI8658C
   IMU, includes a 3-axis gyroscope and a 3-axis accelerometer

5. 1.27mm pitch headers
   Adapting all GPIO and Debug pins
6. W25Q16JVUXIQ
   2MB NOR-Flash
7. RP2040
   Dual-core processor, up to 133MHz operating frequency
8. RESET Button
9. BOOT Button
   press it when resetting to enter download mode

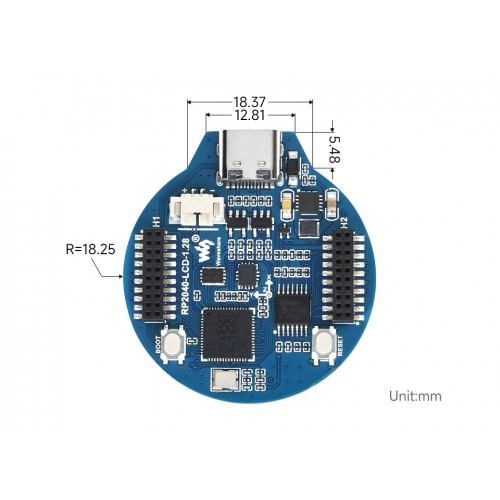

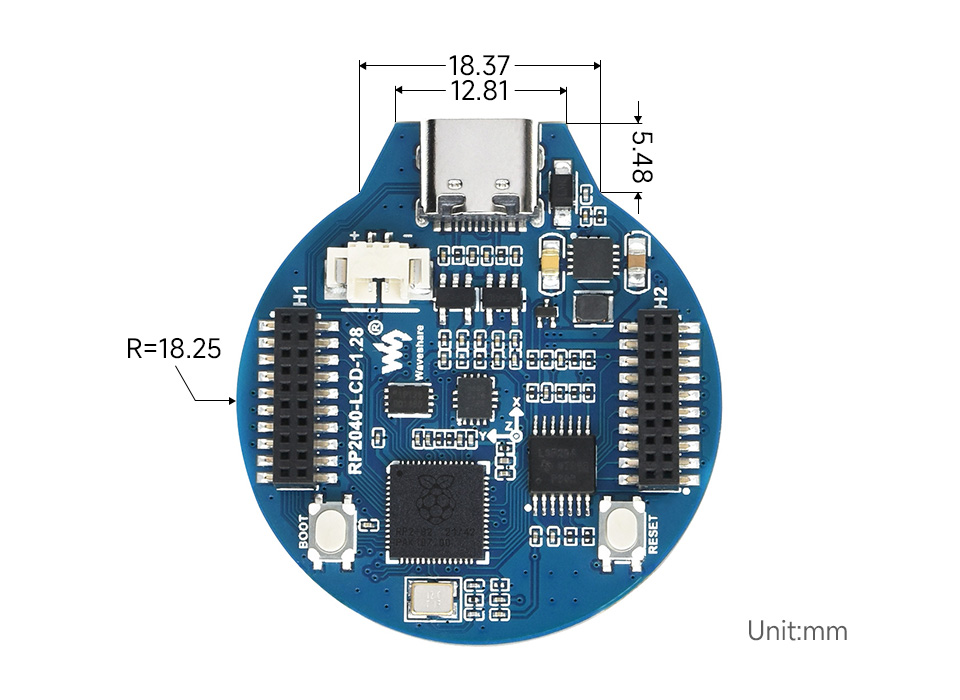

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2040-LCD-1.28

Cautions & Warnings:

Development boards do not necessarily have the same ESD protection as those afforded in an enclosed commercial product and are not necessarily EMC compliant either. Please ensure you are familiar with ESD handling precautions when working with development boards.

Please be aware of the type and quality of board you are purchasing. These boards may not be recommended for use in a commercial or industrial setting but are great for use in a developmental or electronics maker/hacking environment. Please note that due to the complexity of issues related to development work, these boards are not provided with any warranty or technical support and no warranty is provided as to the fit-for-purpose for customer applications. However, we will always try and help with customer support enquiries and welcome feedback.
